Universal Joint

Share:

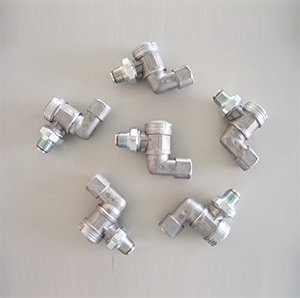

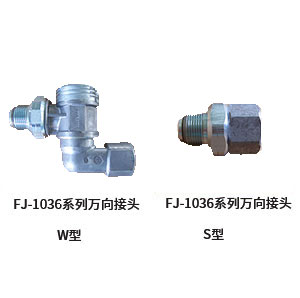

Tatsuno FJ-1036 series universal joint has two category: type W and type S. The type W can be rotated 360° on two planes which make it convenient for users to refuel vehicle by improving flexibility of the refueling nozzle and hose. The type S is only rotated 360° on one single plane.

More
  • Basic configuration
  • Product characteristics
  • Product parameters
  • Component display
  • Video display
  • Data download
Main Body Material: aluminum alloy
Rotating on two planes: the first plane (the outlet of the universal joint is connected to the inlet of the refueling nozzle) realizes the rotation of the nozzle and the joint.  The second plane (the inlet of the universal joint is connected to the outlet of the oil pipe) make the rotation possible of the joint and the oil pipe. Not only is it convenient for the user to operate but it also reduces the hose damage caused by twisting.
Type Inlet * Outlet Specification Length Height
W NPT3/4 * NPT3/4 120 mm 89 mm
S NPT3/4 * NPT3/4 61 mm 41 mm
